TP-Link MR3220 V2 Zadziwiający problem z kodem PIN

kamel16 · 22 Sierpień 2014 19:22

Witam Serdecznie i proszę o pomoc
Posiadam modem 2G/3G D-Link DWM-156 z kartą Orange. Karta jest zabezpieczona kodem pin. Nie da się go ściągnąć ani zmienić. Nie da się.

Chciałem go "sparować" z Routerem TP- LINK MR3220. Wszystko generalnie cacy, tylko że nic mnie o ten kod pin w routerze nie prosi. Nie mam połączenia z siecią. Modem jest widoczny i zidentyfikowany. Lecz pozostaje ten kod pin. NIE MAM GDZIE GO WPISAĆ A ŚCIĄGNĄĆ SIĘ GO NIE DA :o
Zaktualizowałem firmware i nic- miejsca na kod nie ma, choć wszędzie jest napisane że jest. (w supporcie po prawej, w opisach zmian przy kolejnych wersjach firmware, ogólnie w sieci) A ja nie mam takiej możliwości:

Heinz · 22 Sierpień 2014 19:57

Nie mam pomysłu dlaczego nie można podać kodu PIN w ustawieniach routera jednak mogę polecić oprogramowanie GargoylePL na którym można ten PIN wpisać.

CHACA · 22 Sierpień 2014 20:54

I nie będzie. Sprawdzałeś zakładkę Modem Settings?

kamel16 · 23 Sierpień 2014 06:55

Oczywiście. ->

Po kliknięciu na Add New, router chce żebym mu wysłał *bin z ustawieniami. Czego? Modemu? Nie jestem w stanie wyeksportować pliku ustawień z mojego modemu. Poza tym w aplikacji dostępowej D-Linka nie ma możliwości zapamiętania kodu pin. Wpisuję go po każdym restarcie komputera...

Dorzucam jeszcze zrzut ekranu po kliknięciu "advanced settings" na pierwszym screenie z mojej pierwszej wypowiedzi:

Wgrałem do routera soft gargoyle-1.6.1.5-ar71xx-tl-mr3220-v2-squashfs-factory.bin
Mam dwa problemy:

Nie wiem jak to ustawić:

Router w takim przypadku nie widzi/ nie rozpoznaje mojego modemu.

Heinz · 23 Sierpień 2014 11:41

Żle ustawiasz. Wybierz:
Połączenie - Modem CDMA/3G/LTE
Technologia - 4G/3G/2G
Urządzenie - /dev/ttyUSB0

kamel16 · 23 Sierpień 2014 12:38

Ustawiłem:

Jednak router nie widzi mojego modemu

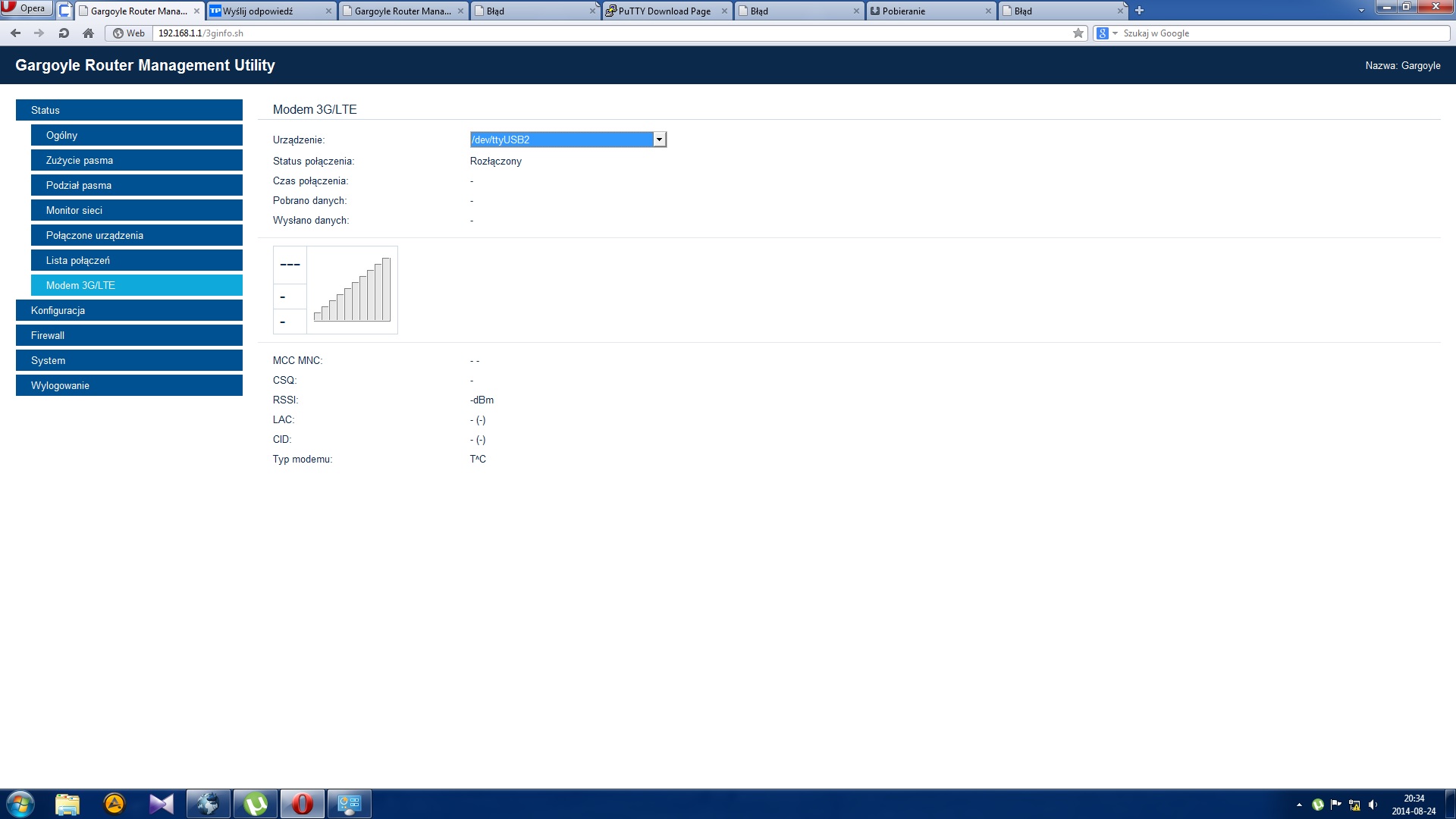

Po wciśnięciu "skanuj" ->

Heinz · 23 Sierpień 2014 15:18

Podaj log z urzadzenia.

kamel16 · 23 Sierpień 2014 15:52

Jan  1 01:00:39 Gargoyle kern.debug kernel: [    0.000000]   Normal zone: 64 pages used for memmap
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    0.000000]   Normal zone: 0 pages reserved
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    0.000000]   Normal zone: 8128 pages, LIFO batch:0
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    0.000000] pcpu-alloc: [0] 0
Jan  1 01:00:39 Gargoyle kern.warn kernel: [    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 8128
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.000000] Kernel command line:  board=TL-MR3220-v2 console=ttyATH0,115200 rootfstype=squashfs,jffs2 noinitrd
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.000000] PID hash table entries: 128 (order: -3, 512 bytes)
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.000000] Dentry cache hash table entries: 4096 (order: 2, 16384 bytes)
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.000000] Inode-cache hash table entries: 2048 (order: 1, 8192 bytes)
Jan  1 01:00:39 Gargoyle kern.warn kernel: [    0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
Jan  1 01:00:39 Gargoyle kern.warn kernel: [    0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.000000] Writing ErrCtl register=00000000
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.000000] Readback ErrCtl register=00000000
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.000000] Memory: 29044k/32768k available (2224k kernel code, 3724k reserved, 391k data, 184k init, 0k highmem)
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.000000] SLUB: Genslabs=9, HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.000000] NR_IRQS:51
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.000000] Calibrating delay loop... 265.42 BogoMIPS (lpj=1327104)
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.080000] pid_max: default: 32768 minimum: 301
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.080000] Mount-cache hash table entries: 512
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.090000] NET: Registered protocol family 16
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.090000] gpiochip_add: registered GPIOs 0 to 29 on device: ath79
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.100000] MIPS: machine is TP-LINK TL-MR3220 v2
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.550000] bio: create slab <bio-0> at 0
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.560000] Switching to clocksource MIPS
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.560000] NET: Registered protocol family 2
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.570000] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.570000] TCP established hash table entries: 1024 (order: 1, 8192 bytes)
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.570000] TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.580000] TCP: Hash tables configured (established 1024 bind 1024)
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.590000] TCP reno registered
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.590000] UDP hash table entries: 256 (order: 0, 4096 bytes)
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.600000] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.600000] NET: Registered protocol family 1
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    0.610000] PCI: CLS 0 bytes, default 32
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.620000] squashfs: version 4.0 (2009/01/31) Phillip Lougher
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.630000] JFFS2 version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.640000] msgmni has been set to 56
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.640000] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 254)
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.650000] io scheduler noop registered
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.650000] io scheduler deadline registered (default)
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.660000] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.670000] ar933x-uart: ttyATH0 at MMIO 0x18020000 (irq = 11) is a AR933X UART
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.680000] console [ttyATH0] enabled, bootconsole disabled
Jan  1 01:00:39 Gargoyle kern.warn kernel: [    0.690000] m25p80 spi0.0: found s25sl032a, expected m25p80
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.690000] m25p80 spi0.0: s25sl032a (4096 Kbytes)
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.700000] 5 tp-link partitions found on MTD device spi0.0
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.700000] Creating 5 MTD partitions on "spi0.0":
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.710000] 0x000000000000-0x000000020000 : "u-boot"
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.720000] 0x000000020000-0x000000109730 : "kernel"
Jan  1 01:00:39 Gargoyle kern.warn kernel: [    0.720000] mtd: partition "kernel" must either start or end on erase block boundary or be smaller than an erase block -- forcing read-only
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.730000] 0x000000109730-0x0000003f0000 : "rootfs"
Jan  1 01:00:39 Gargoyle kern.warn kernel: [    0.740000] mtd: partition "rootfs" must either start or end on erase block boundary or be smaller than an erase block -- forcing read-only
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.750000] mtd: partition "rootfs" set to be root filesystem
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.760000] mtd: partition "rootfs_data" created automatically, ofs=3A0000, len=50000
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.760000] 0x0000003a0000-0x0000003f0000 : "rootfs_data"
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.770000] 0x0000003f0000-0x000000400000 : "art"
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.780000] 0x000000020000-0x0000003f0000 : "firmware"
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.800000] ag71xx_mdio: probed
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.800000] eth0: Atheros AG71xx at 0xba000000, irq 5
Jan  1 01:00:39 Gargoyle kern.info kernel: [    1.360000] eth0: Found an AR7240/AR9330 built-in switch
Jan  1 01:00:39 Gargoyle kern.info kernel: [    2.390000] eth1: Atheros AG71xx at 0xb9000000, irq 4
Jan  1 01:00:39 Gargoyle kern.info kernel: [    2.940000] ag71xx ag71xx.0: eth1: connected to PHY at ag71xx-mdio.1:04 [uid=004dd041, driver=Generic PHY]
Jan  1 01:00:39 Gargoyle kern.info kernel: [    2.950000] TCP cubic registered
Jan  1 01:00:39 Gargoyle kern.info kernel: [    2.950000] NET: Registered protocol family 17
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    2.960000] Bridge firewalling registered
Jan  1 01:00:39 Gargoyle kern.info kernel: [   34.760000] ip_tables: (C) 2000-2006 Netfilter Core Team
Jan  1 01:00:39 Gargoyle kern.info kernel: [   35.180000] NET: Registered protocol family 24
Jan  1 01:00:39 Gargoyle kern.info kernel: [   35.250000] nf_conntrack version 0.5.0 (456 buckets, 1824 max)
Jan  1 01:00:39 Gargoyle kern.info kernel: [   35.880000] xt_time: kernel timezone is -0000
Jan  1 01:00:39 Gargoyle kern.info kernel: [   36.590000] 	Hooked IMQ after mangle on PREROUTING
Jan  1 01:00:39 Gargoyle kern.info kernel: [   36.600000] 	Hooked IMQ after nat on POSTROUTING
Jan  1 01:00:39 Gargoyle kern.info kernel: [   36.600000] IMQ driver loaded successfully. (numdevs = 2, numqueues = 1)
Jan  1 01:00:39 Gargoyle kern.info kernel: [   36.800000] Netfilter messages via NETLINK v0.30.
Jan  1 01:00:39 Gargoyle kern.notice kernel: [   36.830000] ip_set: protocol 6
Jan  1 01:00:39 Gargoyle kern.info kernel: [   37.430000] usbcore: registered new interface driver cdc_acm
Jan  1 01:00:39 Gargoyle kern.info kernel: [   37.430000] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
Jan  1 01:00:39 Gargoyle kern.info kernel: [   37.570000] usbcore: registered new interface driver usbserial
Jan  1 01:00:39 Gargoyle kern.info kernel: [   37.580000] USB Serial support registered for generic
Jan  1 01:00:39 Gargoyle kern.info kernel: [   37.580000] usbcore: registered new interface driver usbserial_generic
Jan  1 01:00:39 Gargoyle kern.info kernel: [   37.590000] usbserial: USB Serial Driver core
Jan  1 01:00:39 Gargoyle kern.info kernel: [   37.640000] usbcore: registered new interface driver cdc_ether
Jan  1 01:00:39 Gargoyle kern.info kernel: [   37.780000] usbcore: registered new interface driver cdc_ncm
Jan  1 01:00:39 Gargoyle kern.info kernel: [   37.890000] USB Serial support registered for GSM modem (1-port)
Jan  1 01:00:39 Gargoyle kern.info kernel: [   37.890000] usbcore: registered new interface driver option
Jan  1 01:00:39 Gargoyle kern.info kernel: [   37.900000] option: v0.7.2:USB Driver for GSM modems
Jan  1 01:00:39 Gargoyle kern.info kernel: [   38.030000] USB Serial support registered for Sierra USB modem
Jan  1 01:00:39 Gargoyle kern.info kernel: [   38.030000] usbcore: registered new interface driver sierra
Jan  1 01:00:39 Gargoyle kern.info kernel: [   38.040000] sierra: v.1.7.16:USB Driver for Sierra Wireless USB modems
Jan  1 01:00:42 Gargoyle user.notice usb-modeswitch: 1-0:1.0: Manufacturer=Linux_3.3.8_ehci_hcd Product=Generic_Platform_EHCI_Controller Serial=ehci-platform
Jan  1 01:00:45 Gargoyle kern.info kernel: [   45.620000] eth0: link up (1000Mbps/Full duplex)
Jan  1 01:00:46 Gargoyle kern.info kernel: [   46.040000] eth0: link down
Jan  1 01:00:47 Gargoyle kern.info kernel: [   47.110000] device eth0 entered promiscuous mode
Jan  1 01:00:47 Gargoyle daemon.notice netifd: Interface 'lan' is now up
Jan  1 01:00:47 Gargoyle kern.info kernel: [   47.130000] device eth1 entered promiscuous mode
Jan  1 01:00:47 Gargoyle daemon.notice netifd: Interface 'loopback' is now up
Jan  1 01:00:47 Gargoyle daemon.notice netifd: Interface 'wan' is now down
Jan  1 01:00:47 Gargoyle user.notice firewall: Reloading firewall due to ifup of lan (br-lan)
Jan  1 01:00:48 Gargoyle kern.info kernel: [   48.210000] eth0: link up (1000Mbps/Full duplex)
Jan  1 01:00:48 Gargoyle kern.info kernel: [   48.210000] br-lan: port 1(eth0) entered forwarding state
Jan  1 01:00:48 Gargoyle kern.info kernel: [   48.210000] br-lan: port 1(eth0) entered forwarding state
Jan  1 01:00:50 Gargoyle kern.info kernel: [   50.210000] br-lan: port 1(eth0) entered forwarding state
Jan  1 01:00:52 Gargoyle kern.info kernel: [   52.540000] device wlan0 entered promiscuous mode
Jan  1 01:00:52 Gargoyle kern.info kernel: [   52.560000] br-lan: port 3(wlan0) entered forwarding state
Jan  1 01:00:52 Gargoyle kern.info kernel: [   52.570000] br-lan: port 3(wlan0) entered forwarding state
Jan  1 01:00:54 Gargoyle kern.info kernel: [   54.570000] br-lan: port 3(wlan0) entered forwarding state
Jan  1 01:13:00 Gargoyle authpriv.info dropbear[1469]: Running in background
Jan  1 01:13:00 Gargoyle daemon.warn httpd_gargoyle[1494]: started as root without requesting chroot(), warning only
Jan  1 01:13:00 Gargoyle daemon.notice httpd_gargoyle[1494]: httpd_gargoyle/1.0 14mar2008 starting on Gargoyle, port 80
Jan  1 01:13:01 Gargoyle user.notice dnsmasq: DNS rebinding protection is active, will discard upstream RFC1918 responses!
Jan  1 01:13:01 Gargoyle user.notice dnsmasq: Allowing 127.0.0.0/8 responses
Jan  1 01:13:01 Gargoyle user.notice dnsmasq: Allowing RFC1918 responses for domain free.aero2.net.pl
Jan  1 01:13:04 Gargoyle daemon.info dnsmasq[1527]: started, version 2.66 cachesize 150
Jan  1 01:13:04 Gargoyle daemon.info dnsmasq[1527]: compile time options: no-IPv6 GNU-getopt no-DBus no-i18n no-IDN DHCP no-DHCPv6 no-Lua TFTP no-conntrack no-ipset no-auth
Jan  1 01:13:04 Gargoyle daemon.info dnsmasq-dhcp[1527]: DHCP, IP range 192.168.1.100 -- 192.168.1.249, lease time 12h
Jan  1 01:13:04 Gargoyle daemon.info dnsmasq[1527]: using local addresses only for domain lan
Jan  1 01:13:04 Gargoyle daemon.info dnsmasq[1527]: reading /tmp/resolv.conf.auto
Jan  1 01:13:04 Gargoyle daemon.warn dnsmasq[1527]: ignoring nameserver 192.168.1.1 - local interface
Jan  1 01:13:04 Gargoyle daemon.info dnsmasq[1527]: using local addresses only for domain lan
Jan  1 01:13:04 Gargoyle daemon.info dnsmasq[1527]: read /etc/hosts - 2 addresses
Jan  1 01:13:04 Gargoyle daemon.info dnsmasq-dhcp[1527]: read /etc/ethers - 0 addresses
Jan  1 01:13:05 Gargoyle user.info sysinit: ERROR: No valid dynamic DNS service configurations defined
Jan  1 01:13:05 Gargoyle user.info sysinit: (Did you specify correct configuration file path?)
Jan  1 01:13:05 Gargoyle user.info sysinit: setting up led WAN
Jan  1 01:13:05 Gargoyle user.info sysinit: setting up led LAN1
Jan  1 01:13:05 Gargoyle user.info sysinit: setting up led LAN2
Jan  1 01:13:05 Gargoyle user.info sysinit: setting up led LAN3
Jan  1 01:13:05 Gargoyle user.info sysinit: setting up led LAN4
Jan  1 01:13:05 Gargoyle user.info sysinit: setting up led WLAN
Jan  1 01:13:05 Gargoyle user.info sysinit: setting up led USB
Jan  1 01:13:16 Gargoyle daemon.info dnsmasq-dhcp[1527]: DHCPREQUEST(br-lan) 192.168.1.131 44:8a:5b:28:a3:03
Jan  1 01:13:16 Gargoyle daemon.info dnsmasq-dhcp[1527]: DHCPACK(br-lan) 192.168.1.131 44:8a:5b:28:a3:03 Kuba-Komputer
Jan  1 01:13:20 Gargoyle daemon.info dnsmasq-dhcp[1527]: DHCPINFORM(br-lan) 192.168.1.131 44:8a:5b:28:a3:03
Jan  1 01:13:20 Gargoyle daemon.info dnsmasq-dhcp[1527]: DHCPACK(br-lan) 192.168.1.131 44:8a:5b:28:a3:03 Kuba-Komputer
Jan  1 01:13:39 Gargoyle kern.info kernel: [   95.920000] usb 1-1: new high-speed USB device number 2 using ehci-platform
Jan  1 01:13:39 Gargoyle kern.info kernel: [   96.070000] scsi0 : usb-storage 1-1:1.0
Jan  1 01:13:39 Gargoyle user.notice usb-modeswitch: 1-1:1.0: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=536591501107810
Jan  1 01:13:40 Gargoyle user.notice usb-modeswitch: 1-1:1.0: Selecting /etc/usb_modeswitch.d/2001:a706 for mode switching
Jan  1 01:13:40 Gargoyle syslog.notice usb_modeswitch: switch device 2001:a706 on 001/002
Jan  1 01:13:40 Gargoyle kern.warn kernel: [   96.550000] usb 1-1: usbfs: process 1836 (usb_modeswitch) did not claim interface 0 before use
Jan  1 01:13:40 Gargoyle kern.info kernel: [   96.560000] usb 1-1: USB disconnect, device number 2
Jan  1 01:13:41 Gargoyle kern.info kernel: [   97.380000] usb 1-1: new high-speed USB device number 3 using ehci-platform
Jan  1 01:13:41 Gargoyle kern.info kernel: [   97.540000] scsi1 : usb-storage 1-1:1.6
Jan  1 01:13:41 Gargoyle user.notice usb-modeswitch: 1-1:1.0: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:13:41 Gargoyle user.notice usb-modeswitch: 1-1:1.1: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:13:42 Gargoyle user.notice usb-modeswitch: 1-1:1.2: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:13:42 Gargoyle user.notice usb-modeswitch: 1-1:1.3: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:13:42 Gargoyle user.notice usb-modeswitch: 1-1:1.4: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:13:42 Gargoyle kern.notice kernel: [   98.540000] scsi 1:0:0:0: Direct-Access     HSPA USB SCSI CD-ROM      6225 PQ: 0 ANSI: 0 CCS
Jan  1 01:13:42 Gargoyle kern.notice kernel: [   98.550000] sd 1:0:0:0: [sda] Attached SCSI removable disk
Jan  1 01:13:42 Gargoyle user.notice usb-modeswitch: 1-1:1.5: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:13:42 Gargoyle user.notice usb-modeswitch: 1-1:1.6: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:14:24 Gargoyle daemon.info dnsmasq-dhcp[1527]: DHCPINFORM(br-lan) 192.168.1.131 44:8a:5b:28:a3:03
Jan  1 01:14:24 Gargoyle daemon.info dnsmasq-dhcp[1527]: DHCPACK(br-lan) 192.168.1.131 44:8a:5b:28:a3:03 Kuba-Komputer
Success

Heinz · 23 Sierpień 2014 19:06

Twój modem jest trochę problematyczny ale można go ustawić.

Pierwsza rzecz to edycja pliku /etc/hotplug.d/usb/20-modeswitch
należy dodać linię: sleep 3

tak aby plik wyglądał tak:

#!/bin/sh
local uVid uPid uMa uPr uSe
local sVe sMo sRe
local modeswitch="/usr/bin/usb_modeswitch"

log() {
        logger -t "usb-modeswitch" "$@"
}
sleep 3
sanitize() {
        sed -e 's/[[:space:]]\+$//; s/[[:space:]]\+/_/g' "$@"
}
##i wiele więcej###

następnie wydać polecenie w konsoli:

echo "07d1 7e11" > /sys/bus/usb-serial/drivers/option1/new_id

Po restarcie modem powinien być wykrywany prawidłowo.

kamel16 · 23 Sierpień 2014 19:13

Mam krótkie pytanie

Gdzie jest konsola?
drugie: W co ja mam wejść tak w ogóle? Tzn. Gdzie?
Bardzo proszę jak dla laika...

Mam przez PuTTy wejść do routera?

Heinz · 23 Sierpień 2014 19:36

ojoj to proste nie będzie. PRZECZYTAJ 2 RAZY zanim zaczniesz.

Konsola dostępna jest przez ssh i można tam się dostać za pomocą programu putty.

z wydaniem polecenia problemu nie będzie bo wystarczy je wkleić ( kliknąć prawym przyciskiem myszy)
Trudniej wyedytować plik.

jeśli się nie pomylisz i wykonasz wg instrukcji to dasz radę, to co jest w znacznikach code to wykonujesz na konsoli reszta to komentarze:

uruchom putty i w polu hostname wpisz ip 192.168.1.1 , zaznacz SSH i kliknij OPEN
w putty wklej polecenie:

echo "07d1 7e11" > /sys/bus/usb-serial/drivers/option1/new_id
vi /etc/hotplug.d/usb/20-modeswitch

teraz otworzył się edytor vi i w nim nic nie wyklikasz jedynie obsługa klawiszami więc naciskaj dokładnie tyle razy dany klawisz ile napiszę:

{naciśnij 11 razy strzałkę w dół}
{naciśnij o}
{wpisz: sleep 3}
{naciśnij ENTER}
{naciśnij ESC}
{naciśnij :(dwukropek)}
{wpisz !wq(wykrzyknik,w,q)}

Jeśli się pomylisz to najłatwiej zrestartować i zacząć wpisywać ponownie lub przycisnąć ESC i wpisać :q! wtedy opuścisz edytor bez zapisywania zmian.

kamel16 · 23 Sierpień 2014 20:31

Dalej to samo.
Załączam logi z routera:

Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.660000] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.670000] ar933x-uart: ttyATH0 at MMIO 0x18020000 (irq = 11) is a AR933X UART
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.680000] console [ttyATH0] enabled, bootconsole disabled
Jan  1 01:00:39 Gargoyle kern.warn kernel: [    0.690000] m25p80 spi0.0: found s25sl032a, expected m25p80
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.690000] m25p80 spi0.0: s25sl032a (4096 Kbytes)
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.700000] 5 tp-link partitions found on MTD device spi0.0
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.700000] Creating 5 MTD partitions on "spi0.0":
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.710000] 0x000000000000-0x000000020000 : "u-boot"
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.720000] 0x000000020000-0x000000109730 : "kernel"
Jan  1 01:00:39 Gargoyle kern.warn kernel: [    0.720000] mtd: partition "kernel" must either start or end on erase block boundary or be smaller than an erase block -- forcing read-only
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.730000] 0x000000109730-0x0000003f0000 : "rootfs"
Jan  1 01:00:39 Gargoyle kern.warn kernel: [    0.740000] mtd: partition "rootfs" must either start or end on erase block boundary or be smaller than an erase block -- forcing read-only
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.750000] mtd: partition "rootfs" set to be root filesystem
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.760000] mtd: partition "rootfs_data" created automatically, ofs=3A0000, len=50000
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.760000] 0x0000003a0000-0x0000003f0000 : "rootfs_data"
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.770000] 0x0000003f0000-0x000000400000 : "art"
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    0.780000] 0x000000020000-0x0000003f0000 : "firmware"
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.800000] ag71xx_mdio: probed
Jan  1 01:00:39 Gargoyle kern.info kernel: [    0.800000] eth0: Atheros AG71xx at 0xba000000, irq 5
Jan  1 01:00:39 Gargoyle kern.info kernel: [    1.360000] eth0: Found an AR7240/AR9330 built-in switch
Jan  1 01:00:39 Gargoyle kern.info kernel: [    2.390000] eth1: Atheros AG71xx at 0xb9000000, irq 4
Jan  1 01:00:39 Gargoyle kern.info kernel: [    2.940000] ag71xx ag71xx.0: eth1: connected to PHY at ag71xx-mdio.1:04 [uid=004dd041, driver=Generic PHY]
Jan  1 01:00:39 Gargoyle kern.info kernel: [    2.950000] TCP cubic registered
Jan  1 01:00:39 Gargoyle kern.info kernel: [    2.950000] NET: Registered protocol family 17
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    2.960000] Bridge firewalling registered
Jan  1 01:00:39 Gargoyle kern.info kernel: [    2.960000] Ebtables v2.0 registered
Jan  1 01:00:39 Gargoyle kern.info kernel: [    2.960000] 8021q: 802.1Q VLAN Support v1.8
Jan  1 01:00:39 Gargoyle kern.info kernel: [    2.970000] VFS: Mounted root (squashfs filesystem) readonly on device 31:2.
Jan  1 01:00:39 Gargoyle kern.info kernel: [    2.980000] Freeing unused kernel memory: 184k freed
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    6.360000] Registered led device: tp-link:green:lan1
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    6.360000] Registered led device: tp-link:green:lan2
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    6.360000] Registered led device: tp-link:green:lan3
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    6.360000] Registered led device: tp-link:green:lan4
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    6.370000] Registered led device: tp-link:green:qss
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    6.370000] Registered led device: tp-link:green:system
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    6.370000] Registered led device: tp-link:green:wan
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    6.370000] Registered led device: tp-link:green:wlan
Jan  1 01:00:39 Gargoyle kern.debug kernel: [    6.370000] Registered led device: tp-link:green:3g
Jan  1 01:00:39 Gargoyle kern.info kernel: [    7.810000] eth0: link up (1000Mbps/Full duplex)
Jan  1 01:00:39 Gargoyle kern.notice kernel: [    9.700000] JFFS2 notice: (444) jffs2_build_xattr_subsystem: complete building xattr subsystem, 1 of xdatum (1 unchecked, 0 orphan) and 39 of xref (0 dead, 22 orphan) found.
Jan  1 01:00:39 Gargoyle kern.notice kernel: [   10.450000] SCSI subsystem initialized
Jan  1 01:00:39 Gargoyle kern.info kernel: [   10.620000] usbcore: registered new interface driver usbfs
Jan  1 01:00:39 Gargoyle kern.info kernel: [   10.620000] usbcore: registered new interface driver hub
Jan  1 01:00:39 Gargoyle kern.info kernel: [   10.630000] usbcore: registered new device driver usb
Jan  1 01:00:39 Gargoyle kern.info kernel: [   11.100000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
Jan  1 01:00:39 Gargoyle kern.info kernel: [   11.100000] ehci-platform ehci-platform: Generic Platform EHCI Controller
Jan  1 01:00:39 Gargoyle kern.info kernel: [   11.110000] ehci-platform ehci-platform: new USB bus registered, assigned bus number 1
Jan  1 01:00:39 Gargoyle kern.info kernel: [   11.150000] ehci-platform ehci-platform: irq 3, io mem 0x1b000000
Jan  1 01:00:39 Gargoyle kern.info kernel: [   11.170000] ehci-platform ehci-platform: USB 2.0 started, EHCI 1.00
Jan  1 01:00:39 Gargoyle kern.info kernel: [   11.170000] hub 1-0:1.0: USB hub found
Jan  1 01:00:39 Gargoyle kern.info kernel: [   11.170000] hub 1-0:1.0: 1 port detected
Jan  1 01:00:39 Gargoyle kern.info kernel: [   11.200000] Initializing USB Mass Storage driver...
Jan  1 01:00:39 Gargoyle kern.info kernel: [   11.200000] usbcore: registered new interface driver usb-storage
Jan  1 01:00:39 Gargoyle kern.info kernel: [   11.200000] USB Mass Storage support registered.
Jan  1 01:00:39 Gargoyle kern.info kernel: [   11.500000] usb 1-1: new high-speed USB device number 2 using ehci-platform
Jan  1 01:00:39 Gargoyle kern.info kernel: [   11.670000] scsi0 : usb-storage 1-1:1.6
Jan  1 01:00:39 Gargoyle kern.notice kernel: [   12.670000] scsi 0:0:0:0: Direct-Access     HSPA USB SCSI CD-ROM      6225 PQ: 0 ANSI: 0 CCS
Jan  1 01:00:39 Gargoyle kern.notice kernel: [   12.680000] sd 0:0:0:0: [sda] Attached SCSI removable disk
Jan  1 01:00:39 Gargoyle kern.info kernel: [   32.590000] eth0: link down
Jan  1 01:00:39 Gargoyle kern.info kernel: [   33.120000] Loading modules backported from Linux version master-2014-05-22-0-gf2032ea
Jan  1 01:00:39 Gargoyle kern.info kernel: [   33.130000] Backport generated by backports.git backports-20140320-37-g5c33da0
Jan  1 01:00:39 Gargoyle kern.info kernel: [   33.310000] cfg80211: Calling CRDA to update world regulatory domain
Jan  1 01:00:39 Gargoyle kern.info kernel: [   33.320000] cfg80211: World regulatory domain updated:
Jan  1 01:00:39 Gargoyle kern.info kernel: [   33.320000] cfg80211:  DFS Master region: unset
Jan  1 01:00:39 Gargoyle kern.info kernel: [   33.330000] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time)
Jan  1 01:00:39 Gargoyle kern.info kernel: [   33.330000] cfg80211:   (2400000 KHz - 2483000 KHz @ 40000 KHz), (N/A, 3000 mBm), (N/A)
Jan  1 01:00:39 Gargoyle kern.info kernel: [   33.340000] cfg80211:   (5140000 KHz - 5860000 KHz @ 40000 KHz), (N/A, 3000 mBm), (N/A)
Jan  1 01:00:39 Gargoyle kern.debug kernel: [   34.350000] ath: EEPROM regdomain: 0x0
Jan  1 01:00:39 Gargoyle kern.debug kernel: [   34.350000] ath: EEPROM indicates default country code should be used
Jan  1 01:00:39 Gargoyle kern.debug kernel: [   34.350000] ath: doing EEPROM country->regdmn map search
Jan  1 01:00:39 Gargoyle kern.debug kernel: [   34.350000] ath: country maps to regdmn code: 0x3a
Jan  1 01:00:39 Gargoyle kern.debug kernel: [   34.350000] ath: Country alpha2 being used: US
Jan  1 01:00:39 Gargoyle kern.debug kernel: [   34.350000] ath: Regpair used: 0x3a
Jan  1 01:00:39 Gargoyle kern.debug kernel: [   34.360000] ieee80211 phy0: Selected rate control algorithm 'minstrel_ht'
Jan  1 01:00:39 Gargoyle kern.debug kernel: [   34.370000] Registered led device: ath9k-phy0
Jan  1 01:00:39 Gargoyle kern.info kernel: [   34.370000] ieee80211 phy0: Atheros AR9330 Rev:1 mem=0xb8100000, irq=2
Jan  1 01:00:39 Gargoyle kern.info kernel: [   34.370000] cfg80211: Calling CRDA for country: US
Jan  1 01:00:39 Gargoyle kern.info kernel: [   34.380000] cfg80211: Regulatory domain changed to country: US
Jan  1 01:00:39 Gargoyle kern.info kernel: [   34.380000] cfg80211:  DFS Master region: unset
Jan  1 01:00:39 Gargoyle kern.info kernel: [   34.390000] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time)
Jan  1 01:00:42 Gargoyle user.notice usb-modeswitch: 1-0:1.0: Manufacturer=Linux_3.3.8_ehci_hcd Product=Generic_Platform_EHCI_Controller Serial=ehci-platform
Jan  1 01:00:43 Gargoyle user.notice usb-modeswitch: 1-1:1.0: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:00:43 Gargoyle user.notice usb-modeswitch: 1-1:1.1: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:00:43 Gargoyle user.notice usb-modeswitch: 1-1:1.2: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:00:44 Gargoyle user.notice usb-modeswitch: 1-1:1.3: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:00:44 Gargoyle user.notice usb-modeswitch: 1-1:1.4: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:00:44 Gargoyle user.notice usb-modeswitch: 1-1:1.5: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:00:44 Gargoyle user.notice usb-modeswitch: 1-1:1.6: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:00:45 Gargoyle kern.info kernel: [   45.570000] eth0: link up (1000Mbps/Full duplex)
Jan  1 01:00:46 Gargoyle kern.info kernel: [   46.000000] eth0: link down
Jan  1 01:00:47 Gargoyle daemon.notice netifd: Interface 'lan' is now up
Jan  1 01:00:47 Gargoyle kern.info kernel: [   47.040000] device eth0 entered promiscuous mode
Jan  1 01:00:47 Gargoyle daemon.notice netifd: Interface 'loopback' is now up
Jan  1 01:00:47 Gargoyle daemon.notice netifd: wan (1034): udhcpc (v1.19.4) started
Jan  1 01:00:47 Gargoyle user.notice firewall: Reloading firewall due to ifup of lan (br-lan)
Jan  1 01:00:47 Gargoyle daemon.notice netifd: wan (1034): Sending discover...
Jan  1 01:00:48 Gargoyle kern.info kernel: [   48.140000] eth0: link up (1000Mbps/Full duplex)
Jan  1 01:00:48 Gargoyle kern.info kernel: [   48.140000] br-lan: port 1(eth0) entered forwarding state
Jan  1 01:00:48 Gargoyle kern.info kernel: [   48.140000] br-lan: port 1(eth0) entered forwarding state
Jan  1 01:00:50 Gargoyle kern.info kernel: [   50.140000] br-lan: port 1(eth0) entered forwarding state
Jan  1 01:00:50 Gargoyle daemon.notice netifd: wan (1034): Sending discover...
Jan  1 01:00:52 Gargoyle kern.info kernel: [   52.840000] device wlan0 entered promiscuous mode
Jan  1 01:00:52 Gargoyle kern.info kernel: [   52.850000] br-lan: port 2(wlan0) entered forwarding state
Jan  1 01:00:52 Gargoyle kern.info kernel: [   52.860000] br-lan: port 2(wlan0) entered forwarding state
Jan  1 01:00:53 Gargoyle daemon.notice netifd: wan (1034): Sending discover...
Jan  1 01:00:54 Gargoyle kern.info kernel: [   54.860000] br-lan: port 2(wlan0) entered forwarding state
Jan  1 01:19:28 Gargoyle authpriv.info dropbear[1546]: Running in background
Jan  1 01:19:28 Gargoyle daemon.warn httpd_gargoyle[1571]: started as root without requesting chroot(), warning only
Jan  1 01:19:28 Gargoyle daemon.notice httpd_gargoyle[1571]: httpd_gargoyle/1.0 14mar2008 starting on Gargoyle, port 80
Jan  1 01:19:29 Gargoyle user.notice dnsmasq: DNS rebinding protection is active, will discard upstream RFC1918 responses!
Jan  1 01:19:29 Gargoyle user.notice dnsmasq: Allowing 127.0.0.0/8 responses
Jan  1 01:19:29 Gargoyle user.notice dnsmasq: Allowing RFC1918 responses for domain free.aero2.net.pl
Jan  1 01:19:32 Gargoyle daemon.info dnsmasq[1604]: started, version 2.66 cachesize 150
Jan  1 01:19:32 Gargoyle daemon.info dnsmasq[1604]: compile time options: no-IPv6 GNU-getopt no-DBus no-i18n no-IDN DHCP no-DHCPv6 no-Lua TFTP no-conntrack no-ipset no-auth
Jan  1 01:19:32 Gargoyle daemon.info dnsmasq-dhcp[1604]: DHCP, IP range 192.168.1.100 -- 192.168.1.249, lease time 12h
Jan  1 01:19:32 Gargoyle daemon.info dnsmasq[1604]: using local addresses only for domain lan
Jan  1 01:19:32 Gargoyle daemon.info dnsmasq[1604]: reading /tmp/resolv.conf.auto
Jan  1 01:19:32 Gargoyle daemon.warn dnsmasq[1604]: ignoring nameserver 192.168.1.1 - local interface
Jan  1 01:19:32 Gargoyle daemon.info dnsmasq[1604]: using local addresses only for domain lan
Jan  1 01:19:32 Gargoyle daemon.info dnsmasq[1604]: read /etc/hosts - 2 addresses
Jan  1 01:19:32 Gargoyle daemon.info dnsmasq-dhcp[1604]: read /etc/ethers - 0 addresses
Jan  1 01:19:33 Gargoyle user.info sysinit: ERROR: No valid dynamic DNS service configurations defined
Jan  1 01:19:33 Gargoyle user.info sysinit: (Did you specify correct configuration file path?)
Jan  1 01:19:33 Gargoyle user.info sysinit: setting up led WAN
Jan  1 01:19:33 Gargoyle user.info sysinit: setting up led LAN1
Jan  1 01:19:33 Gargoyle user.info sysinit: setting up led LAN2
Jan  1 01:19:33 Gargoyle user.info sysinit: setting up led LAN3
Jan  1 01:19:33 Gargoyle user.info sysinit: setting up led LAN4
Jan  1 01:19:33 Gargoyle user.info sysinit: setting up led WLAN
Jan  1 01:19:33 Gargoyle user.info sysinit: setting up led USB
Jan  1 01:19:48 Gargoyle daemon.info dnsmasq-dhcp[1604]: DHCPREQUEST(br-lan) 192.168.1.131 44:8a:5b:28:a3:03
Jan  1 01:19:48 Gargoyle daemon.info dnsmasq-dhcp[1604]: DHCPACK(br-lan) 192.168.1.131 44:8a:5b:28:a3:03 Kuba-Komputer
Jan  1 01:19:52 Gargoyle daemon.info dnsmasq-dhcp[1604]: DHCPINFORM(br-lan) 192.168.1.131 44:8a:5b:28:a3:03
Jan  1 01:19:52 Gargoyle daemon.info dnsmasq-dhcp[1604]: DHCPACK(br-lan) 192.168.1.131 44:8a:5b:28:a3:03 Kuba-Komputer
Jan  1 01:22:24 Gargoyle kern.info kernel: [  233.220000] usb 1-1: USB disconnect, device number 2
Jan  1 01:22:36 Gargoyle kern.info kernel: [  245.510000] usb 1-1: new high-speed USB device number 3 using ehci-platform
Jan  1 01:22:37 Gargoyle kern.info kernel: [  245.660000] scsi1 : usb-storage 1-1:1.0
Jan  1 01:22:37 Gargoyle user.notice usb-modeswitch: 1-1:1.0: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=536591501107810
Jan  1 01:22:37 Gargoyle user.notice usb-modeswitch: 1-1:1.0: Selecting /etc/usb_modeswitch.d/2001:a706 for mode switching
Jan  1 01:22:37 Gargoyle syslog.notice usb_modeswitch: switch device 2001:a706 on 001/003
Jan  1 01:22:37 Gargoyle kern.warn kernel: [  246.220000] usb 1-1: usbfs: process 2179 (usb_modeswitch) did not claim interface 0 before use
Jan  1 01:22:37 Gargoyle kern.info kernel: [  246.230000] usb 1-1: USB disconnect, device number 3
Jan  1 01:22:38 Gargoyle kern.info kernel: [  247.060000] usb 1-1: new high-speed USB device number 4 using ehci-platform
Jan  1 01:22:38 Gargoyle kern.info kernel: [  247.220000] scsi2 : usb-storage 1-1:1.6
Jan  1 01:22:39 Gargoyle user.notice usb-modeswitch: 1-1:1.0: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:22:39 Gargoyle user.notice usb-modeswitch: 1-1:1.1: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:22:39 Gargoyle user.notice usb-modeswitch: 1-1:1.2: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:22:39 Gargoyle user.notice usb-modeswitch: 1-1:1.3: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:22:39 Gargoyle user.notice usb-modeswitch: 1-1:1.4: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:22:39 Gargoyle kern.notice kernel: [  248.220000] scsi 2:0:0:0: Direct-Access     HSPA USB SCSI CD-ROM      6225 PQ: 0 ANSI: 0 CCS
Jan  1 01:22:39 Gargoyle kern.notice kernel: [  248.240000] sd 2:0:0:0: [sda] Attached SCSI removable disk
Jan  1 01:22:39 Gargoyle user.notice usb-modeswitch: 1-1:1.5: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Jan  1 01:22:39 Gargoyle user.notice usb-modeswitch: 1-1:1.6: Manufacturer=D-Link,Inc Product=D-Link_DWM-156 Serial=?
Success

Opiszę po kolei co zrobiłem:
W putty wpisałem adres 192.168.1.1, zaznaczyłem opcję ssh, kliknąłem open
zalogowałem się jako "root" hasło "admin"
Do wiersza z zielonym napisem "root@Gargoyle:~# wkleiłem echo "07d1 7e11" > /sys/bus/usb-serial/drivers/option1/new_id i zatwierdziłem enterem
Następnie wkleiłem vi /etc/hotplug.d/usb/20-modeswitch i zatwierdziłem enterem. Otworzył się edytor vi i wykonałem czynności jak mówiłeś, przynajmniej mam taką nadzieję.
W każdym razie dopisek "sleep3" w tym pliku jest, co udowadniam screenem, może na nim ktoś wypatrzy jakiś mój błąd, bo nie dam sobie głowy uciąć, że po drodze coś nie namieszałem:

Gdzie tkwi feler?

Heinz · 23 Sierpień 2014 21:35

kończą się pomysły
daj wyniki z polecenia:
lsmod
lsusb
opkg list-installed

kamel16 · 24 Sierpień 2014 06:39

lsmod:

root@Gargoyle:~# lsmod
Module                  Size  Used by    Tainted: G
sierra                  6736  0
option                 15152  0
cdc_ncm                 6448  0
usb_wwan                6560  1 option
cdc_ether               2992  0
usbserial              23792  3 sierra,option,usb_wwan
usbnet                 12032  2 cdc_ncm,cdc_ether
cdc_acm                11456  0
ath79_wdt               2240  1
ledtrig_usbdev          2032  0
ledtrig_netdev          3184  0
xt_set                  3056  0
ip_set_list_set         4800  0
ip_set_hash_netport    22512  0
ip_set_hash_netiface    22880  0
ip_set_hash_net        20288  0
ip_set_hash_ipportnet    23904  0
ip_set_hash_ipportip    18976  0
ip_set_hash_ipport     17936  0
ip_set_hash_ip         16336  0
ip_set_bitmap_port      4160  0
ip_set_bitmap_ipmac     4816  0
ip_set_bitmap_ip        4864  0
ip_set                 17936 12 xt_set,ip_set_list_set,ip_set_hash_netport,ip_set_hash_netiface,ip_set_hash_net,ip_set_hash_ipportnet,ip_set_hash_ipportip,ip_set_hash_ipport,ip_set_hash_ip,ip_set_bitmap_port,ip_set_bitmap_ipmac,ip_set_bitmap_ip
nfnetlink               1680  1 ip_set
xt_IMQ                   624  0
imq                     5024  0
ipt_weburl             13296  0
ipt_webmon             12528  0
ipt_timerange            784  0
nf_nat_tftp              400  0
nf_conntrack_tftp       2352  1 nf_nat_tftp
nf_nat_snmp_basic       6912  0
nf_conntrack_snmp        656  1 nf_nat_snmp_basic
nf_nat_sip              5088  0
nf_conntrack_sip       15872  1 nf_nat_sip
nf_nat_pptp             1312  0
nf_conntrack_pptp       3072  1 nf_nat_pptp
nf_nat_h323             4544  0
nf_conntrack_h323      33200  1 nf_nat_h323
nf_nat_proto_gre         784  1 nf_nat_pptp
nf_conntrack_proto_gre     2368  1 nf_conntrack_pptp
nf_nat_amanda            608  0
nf_conntrack_amanda     1536  1 nf_nat_amanda
nf_conntrack_broadcast      752  1 nf_conntrack_snmp
nf_nat_irc               784  0
nf_conntrack_irc        2464  1 nf_nat_irc
nf_nat_ftp               976  0
nf_conntrack_ftp        4416  1 nf_nat_ftp
xt_iprange               896  0
xt_HL                   1200  0
xt_hl                    720  0
xt_ecn                  1168  0
ipt_ECN                 1264  0
xt_CLASSIFY              496  0
xt_time                 1456  0
xt_tcpmss                912  0
xt_statistic             688  0
xt_mark                  592  0
xt_length                608  0
xt_DSCP                 1360  0
xt_dscp                  912  0
xt_string                672  0
xt_layer7               8944  0
xt_quota                 656  0
xt_pkttype               528  0
xt_physdev              1248  0
xt_owner                 592  0
ipt_bandwidth          17600  0
ipt_REDIRECT             576  0
ipt_NETMAP               592  0
ipt_MASQUERADE           976  1
iptable_nat             2544  1
nf_nat                 10256 12 nf_nat_tftp,nf_nat_sip,nf_nat_pptp,nf_nat_h323,nf_nat_proto_gre,nf_nat_amanda,nf_nat_irc,nf_nat_ftp,ipt_REDIRECT,ipt_NETMAP,ipt_MASQUERADE,iptable_nat
xt_recent               5680  0
xt_helper                784  0
xt_connmark              960  0
xt_connbytes            1424  0
pppoe                   7488  0
xt_conntrack            2048  3
xt_CT                   1216  0
xt_NOTRACK               448  0
iptable_raw              560  1
xt_state                 608  0
nf_conntrack_ipv4       4384  6 iptable_nat,nf_nat
nf_defrag_ipv4           656  1 nf_conntrack_ipv4
nf_conntrack           38320 30 nf_nat_tftp,nf_conntrack_tftp,nf_nat_snmp_basic,nf_conntrack_snmp,nf_nat_sip,nf_conntrack_sip,nf_nat_pptp,nf_conntrack_pptp,nf_nat_h323,nf_conntrack_h323,nf_conntrack_proto_gre,nf_nat_amanda,nf_conntrack_amanda,nf_conntrack_broadcast,nf_nat_irc,nf_conntrack_irc,nf_nat_ftp,nf_conntrack_ftp,xt_layer7,ipt_MASQUERADE,iptable_nat,nf_nat,xt_helper,xt_connmark,xt_connbytes,xt_conntrack,xt_CT,xt_NOTRACK,xt_state,nf_conntrack_ipv4
pppox                   1152  1 pppoe
ipt_REJECT              1808  2
xt_TCPMSS               2560  1
ipt_LOG                 6160  0
xt_comment               400 19
xt_multiport            1104  0
xt_mac                   528  0
xt_limit                 944  1
iptable_mangle           832  1
iptable_filter           592  1
ip_tables               9440  4 iptable_nat,iptable_raw,iptable_mangle,iptable_filter
ppp_async               5952  0
ppp_generic            18848  3 pppoe,pppox,ppp_async
slhc                    4368  1 ppp_generic
ath9k                  89696  0
ath9k_common           10608  1 ath9k
ath9k_hw              310368  2 ath9k,ath9k_common
ath                    17392  3 ath9k,ath9k_common,ath9k_hw
mac80211              329024  1 ath9k
ts_fsm                  2496  0
ts_bm                   1344  0
ts_kmp                  1264  5
crc_ccitt                944  1 ppp_async
cfg80211              191120  4 ath9k,ath9k_common,ath,mac80211
compat                  9920  4 ath9k,ath9k_common,mac80211,cfg80211
arc4                     768  2
aes_generic            29808  0
usb_storage            33136  0
ehci_hcd               33616  0
sd_mod                 22240  0
ext4                  237664  0
jbd2                   37248  1 ext4
mbcache                 3504  1 ext4
usbcore                99168 12 sierra,option,cdc_ncm,usb_wwan,cdc_ether,usbserial,usbnet,cdc_acm,ledtrig_usbdev,usb_storage,ehci_hcd
usb_common               480  1 usbcore
scsi_mod               69888  2 usb_storage,sd_mod
nls_base                4640  1 usbcore
crc16                    944  1 ext4
crypto_algapi           9200  2 arc4,aes_generic
ledtrig_timer           1072  0
ledtrig_default_on       416  0
leds_gpio               1552  0
gpio_button_hotplug     3216  0
root@Gargoyle:~#

lsusb nie znajduje (urządzenia/ komendy?)

root@Gargoyle:~# lsusb
-ash: lsusb: not found
root@Gargoyle:~#

opkg list:

root@Gargoyle:~# opkg list-installed
3ginfo-text - 20140608
base-files - 118.2-r41803
block-mount - 0.2.0-9cj
bridge - 1.5-1
busybox - 1.19.4-6
bwmon-gargoyle - 1.6.1.5-1
chat - 2.4.5-10
comgt - 0.32-21cj1
ddns-gargoyle - 1.6.1.5-1
dnsmasq - 2.66-2
dropbear - 2013.58-1
ewget - 1.6.1.5-1
firewall - 2013-06-29
gargoyle - 1.6.1.5-6
gargoyle-firewall-util - 1.6.1.5-1
gpkg - 1.6.1.5-1
haserl - 0.9.26-1
hotplug2 - 1.0-beta-4
httpd-gargoyle - 1.6.1.5-1
ip - 3.3.0-2
ipset - 6.11-2
iptables - 1.4.10-5
iptables-mod-bandwidth - 1.4.10-5
iptables-mod-conntrack-extra - 1.4.10-5
iptables-mod-extra - 1.4.10-5
iptables-mod-filter - 1.4.10-5
iptables-mod-imq - 1.4.10-5
iptables-mod-ipopt - 1.4.10-5
iptables-mod-iprange - 1.4.10-5
iptables-mod-ipset - 1.4.10-5
iptables-mod-nat-extra - 1.4.10-5
iptables-mod-timerange - 1.4.10-5
iptables-mod-webmon - 1.4.10-5
iptables-mod-weburl - 1.4.10-5
iw - 3.14-1
jshn - 2013-10-19-734d28eb1a46358743cf8837c91e5d46695c3b91
kernel - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ath - 3.3.8+2014-05-22-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ath9k - 3.3.8+2014-05-22-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ath9k-common - 3.3.8+2014-05-22-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-cfg80211 - 3.3.8+2014-05-22-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-crypto-aes - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-crypto-arc4 - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-crypto-core - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-fs-ext4 - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-gpio-button-hotplug - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-bandwidth - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-conntrack - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-conntrack-extra - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-core - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-extra - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-filter - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-imq - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-ipopt - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-iprange - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-ipset - 3.3.8+6.11-2-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-nat - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-nat-extra - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-nathelper - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-nathelper-extra - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-timerange - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-webmon - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ipt-weburl - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-leds-gpio - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ledtrig-default-on - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ledtrig-netdev - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ledtrig-timer - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ledtrig-usbdev - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-lib-crc-ccitt - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-lib-crc16 - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-lib-textsearch - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-mac80211 - 3.3.8+2014-05-22-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-nfnetlink - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-nls-base - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-ppp - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-pppoe - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-pppox - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-sched - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-sched-core - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-scsi-core - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-usb-acm - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-usb-core - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-usb-net - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-usb-net-cdc-ether - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-usb-net-cdc-ncm - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-usb-serial - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-usb-serial-option - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-usb-serial-sierrawireless - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-usb-serial-wwan - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-usb-storage - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-usb2 - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
kmod-wdt-ath79 - 3.3.8-1-3b70fc7d412617eb97c6bdc7d8fb7844
libbbtargz - 1.6.1.5-1
libblobmsg-json - 2013-10-19-734d28eb1a46358743cf8837c91e5d46695c3b91
libc - 0.9.33.2-1
libcyassl - 1.6.5-1
libericstools - 1.6.1.5-1
libgcc - 4.6-linaro-1
libip4tc - 1.4.10-5
libiptbwctl - 1.6.1.5-1
libjson-c - 0.11-2
libmnl - 1.0.1-1
libnfnetlink - 1.0.0-2
libnl-tiny - 0.1-3
libpthread - 0.9.33.2-1
librt - 0.9.33.2-1
libubox - 2013-10-19-734d28eb1a46358743cf8837c91e5d46695c3b91
libubus - 2013-08-08-b20a8a01c7faea5bcc9d34d10dcf7736589021b8
libuci - 2013-06-11.1-1
libusb-1.0 - 1.0.9-1
libxtables - 1.4.10-5
miniupnpd - 1.8.20130426-2
mtd - 18.1
netifd - 2013-07-16-2674941b06c1ec67f1aff1bff9212e1372106641
plugin-gargoyle-3ginfo - 20140217
plugin-gargoyle-logread - 20120724-4
plugin-gargoyle-ping-watchdog - 20131030
plugin-gargoyle-theme-blue-ice-c - 20140112-2
plugin-gargoyle-wifi-schedule - 1.1.2-2
ppp - 2.4.5-10
ppp-mod-pppoe - 2.4.5-10
qos-gargoyle - 1.6.1.5-1
swconfig - 10
tc - 3.3.0-2
ubus - 2013-08-08-b20a8a01c7faea5bcc9d34d10dcf7736589021b8
ubusd - 2013-08-08-b20a8a01c7faea5bcc9d34d10dcf7736589021b8
uci - 2013-06-11.1-1
usb-modeswitch - 2.2.0-1
usb-modeswitch-data - 20140529-1
webmon-gargoyle - 1.6.1.5-1
wireless-tools - 29-5
wol - 0.7.1-2
wpad-mini - 20131120-1

Heinz · 24 Sierpień 2014 06:59

Sterowniki wszystkie są.
jeszcze: cat /proc/bus/usb/devices

kamel16 · 24 Sierpień 2014 07:25

Proszę:

root@Gargoyle:~# cat /proc/bus/usb/devices
T:  Bus=01 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#=  1 Spd=480  MxCh= 1
B:  Alloc=  0/800 us ( 0%), #Int=  0, #Iso=  0
D:  Ver= 2.00 Cls=09(hub  ) Sub=00 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=1d6b ProdID=0002 Rev= 3.03
S:  Manufacturer=Linux 3.3.8 ehci_hcd
S:  Product=Generic Platform EHCI Controller
S:  SerialNumber=ehci-platform
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=  0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   4 Ivl=256ms
T:  Bus=01 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  3 Spd=480  MxCh= 0
D:  Ver= 2.00 Cls=ef(misc ) Sub=02 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=2001 ProdID=7d01 Rev= 3.00
S:  Manufacturer=D-Link,Inc
S:  Product=D-Link DWM-156
C:* #Ifs= 7 Cfg#= 1 Atr=a0 MxPwr=500mA
A:  FirstIf#= 0 IfCount= 2 Cls=02(comm.) Sub=0e Prot=00
I:* If#= 0 Alt= 0 #EPs= 1 Cls=02(comm.) Sub=0e Prot=00 Driver=(none)
E:  Ad=88(I) Atr=03(Int.) MxPS=  64 Ivl=125us
I:* If#= 1 Alt= 0 #EPs= 0 Cls=0a(data ) Sub=00 Prot=02 Driver=(none)
I:  If#= 1 Alt= 1 #EPs= 2 Cls=0a(data ) Sub=00 Prot=02 Driver=(none)
E:  Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 2 Alt= 0 #EPs= 3 Cls=ff(vend.) Sub=02 Prot=01 Driver=(none)
E:  Ad=87(I) Atr=03(Int.) MxPS=  64 Ivl=500us
E:  Ad=82(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=02(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 3 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=00 Prot=00 Driver=(none)
E:  Ad=83(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=03(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 4 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=00 Prot=00 Driver=(none)
E:  Ad=84(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=04(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 5 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=00 Prot=00 Driver=(none)
E:  Ad=85(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=05(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 6 Alt= 0 #EPs= 2 Cls=08(stor.) Sub=06 Prot=50 Driver=usb-storage
E:  Ad=86(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=06(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
root@Gargoyle:~#

Heinz · 24 Sierpień 2014 08:14

w konsoli wpisz po kolei:

echo "echo \"2001 7d01\" > /sys/bus/usb-serial/drivers/option1/new_id" > /tmp/rc.local
cat /etc/rc.local >> /tmp/rc.local
cat /tmp/rc.local > /etc/rc.local

zrestartuj router

po restarcie w gui ten modem powinien być widoczny jako /dev/ttyUSB0 do ttyUSB4

Próbuj po kolei każdy port.

kamel16 · 24 Sierpień 2014 18:49

Coś się dzieje.
Tutaj w polu urządzenie:

Po kliknięciu "skanuj" Mam rozwijaną listę i do wyboru sześć urządzeń od 0 do 5 (/dev/ttyUSB0 do ttyUSB5)
Mogę sobie je wybrać, zapisać zmiany i w sumie tyle.
Tutaj:

Mam podobną listę, lecz status na każdym jest "rozłączony" i w każdym polu (czas połączenia, pobieranie danych itd. do samego dołu) są kreski
Po wybraniu każdego urządzenia przez chwilę ok 5-15sek mam ciemnoniebieski ekran "pobieranie danych". I niestety tyle. Status jest "rozłączony" i nic nie jest aktywne. Brakuje mi jeszcze takiego wielkiego przycisku "POŁĄCZ"
Co zaobserwowałem: Jedynie po wybraniu urządzenia /dev/ttyUSB2 mam cokolwiek napisane w polu "typ modemu" Jednak moim zdaniem są to zupełnie losowe znaki i za każdym razem inne i w różnej ilości...

Heinz · 24 Sierpień 2014 19:21

Narazie nie używaj opcji Modem 3G/LTE. zajmij się stroną konfiguracji. tam wybieraj port i klikaj zapisz ustawienia.

kamel16 · 24 Sierpień 2014 19:41

Przeleciałem wszystkie po kolei, zapisałem i nic. Brak odzewu- internetu brak.
(cały czas jestem podłączony kablem do routera z komputera stacjonarnego o ile to ma jakieś znaczenie)
