Cpe 510

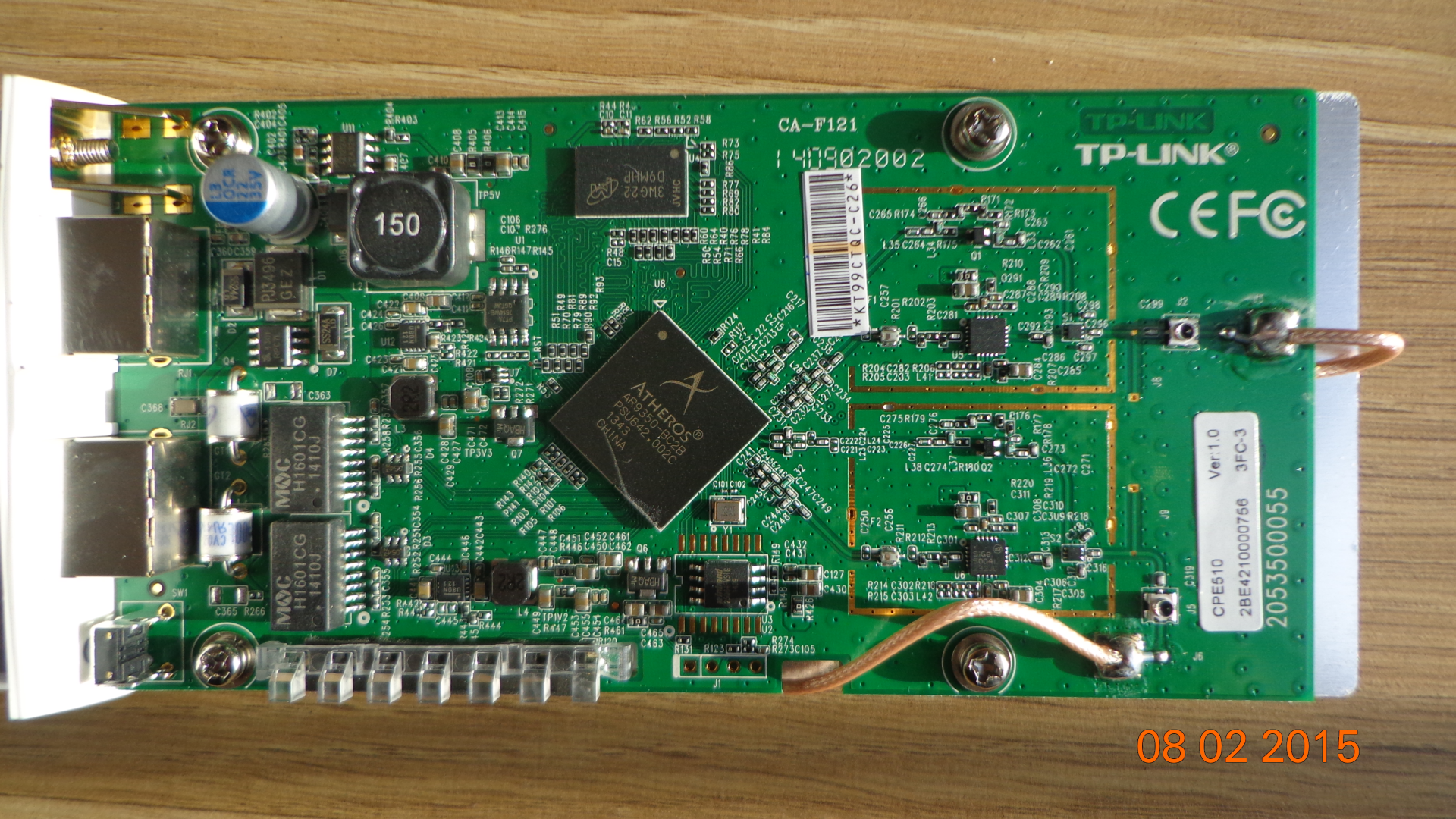

CPE 510v1
SoC: Atheros AR9350-BC2B
Ram: 64MB Micron MT47H32M16HR-25E
Flash: 8MB Winbound 25Q64FVSIG
WiFi Amp: 2x SiGe 5004L

TP-LINK SafeLoader (Build time: Dec 29 2013 - 06:34:02)
CPU: 560MHz AHB: 225MHz DDR: 64MB
Performing LED check..  PASS
Press CTRL+B to enter SafeLoader: 1
open user-config failed.
Allocated memory for elf segment ok: addr: 0x80260000, size 0x4cde20
Loading .text @ 0x80261030 (4848 bytes)
Loading .rodata.str1.4 @ 0x80262320 (212 bytes)
Loading .data @ 0x80262400 (825867 bytes)
Clearing .bss @ 0x8032be10 (4202512 bytes)
Starting kernel
Booting Atheros AR934x
Linux version 2.6.31 (root@ubuntu) (gcc version 4.3.3 (GCC) ) #1 PREEMPT Wed Jul 9 14:10:26 HKT 2014
flash_size passed from bootloader = 0
CPU revision is: 0001974c (MIPS 74Kc)
ath_sys_frequency: cpu srif ddr srif cpu 560 ddr 450 ahb 225
Determined physical RAM map:
 memory: 02000000 @ 00000000 (usable)
User-defined physical RAM map:
 memory: 04000000 @ 00000000 (usable)
Zone PFN ranges:
  Normal   0x00000000 -> 0x00004000
Movable zone start PFN for each node
early_node_map[1] active PFN ranges
    0: 0x00000000 -> 0x00004000
Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 16256
Kernel command line: console=ttyS0,115200 root=31:04 rootfstype=squashfs init=/init mtdparts=ath-nor0:128k(u-boot),64k(pation-table),64k(product-info),1536k(kernel),6144k(rootfs),192k(config),64k(ART) mem=64M
PID hash table entries: 256 (order: 8, 1024 bytes)
Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
Writing ErrCtl register=00000000
Readback ErrCtl register=00000000
Memory: 62388k/65536k available (1836k kernel code, 3080k reserved, 476k data, 116k init, 0k highmem)
Hierarchical RCU implementation.
NR_IRQS:128
plat_time_init: plat time init done
Calibrating delay loop... 279.55 BogoMIPS (lpj=559104)
Mount-cache hash table entries: 512
NET: Registered protocol family 16
bio: create slab <bio-0> at 0
NET: Registered protocol family 2
IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
net_link: create socket ok.
TCP established hash table entries: 2048 (order: 2, 16384 bytes)
TCP bind hash table entries: 2048 (order: 1, 8192 bytes)
TCP: Hash tables configured (established 2048 bind 2048)
TCP reno registered
NET: Registered protocol family 1
ATH GPIOC major 0
squashfs: version 4.0 (2009/01/31) Phillip Lougher
NTFS driver 2.1.29 [Flags: R/O].
msgmni has been set to 121
alg: No test for lzma (lzma-generic)
alg: No test for stdrng (krng)
io scheduler noop registered
io scheduler anticipatory registered
io scheduler deadline registered
io scheduler cfq registered (default)
Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
serial8250.0: ttyS0 at MMIO 0xb8020000 (irq = 19) is a 16550A
console [ttyS0] enabled
PPP generic driver version 2.4.2
NET: Registered protocol family 24
7 cmdlinepart partitions found on MTD device ath-nor0
Creating 7 MTD partitions on "ath-nor0":
0x000000000000-0x000000020000 : "u-boot"
0x000000020000-0x000000030000 : "pation-table"
0x000000030000-0x000000040000 : "product-info"
0x000000040000-0x0000001c0000 : "kernel"
0x0000001c0000-0x0000007c0000 : "rootfs"
0x0000007c0000-0x0000007f0000 : "config"
0x0000007f0000-0x000000800000 : "ART"
TCP cubic registered
NET: Registered protocol family 17
802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>
All bugs added by David S. Miller <davem@redhat.com>
athwdt_init: Registering WDT success
athwdt_timer_init: Starting WDT.
ath_otp_init: Registering OTP success
ath_clksw_init: Registering Clock Switch Interface success
VFS: Mounted root (squashfs filesystem) readonly on device 31:4.
Freeing unused kernel memory: 116k freed
init started:  BusyBox v1.01 (2014.07.09-06:10+0000) multi-call binary
This Board use 2.6.31
xt_time: kernel timezone is -0000
nf_conntrack version 0.5.0 (1024 buckets, 30720 max)
ip_tables: (C) 2000-2006 Netfilter Core Team
insmod: cannot open module `/lib/modules/2.6.31/kernel/iptable_raw.ko': No such file or directory
PPPoL2TP kernel driver, V1.0
PPTP driver version 0.8.3
WARN: TDB not supported!
WARN: TDB not supported!
 (none) mips #1 PREEMPT Wed Jul 9 14:10:26 HKT 2014 (none)
(none) login: httpMudCreate: MUD 0x6566a0 was created
ATHR_GMAC: Length per segment 1536
ATHR_GMAC: fifo cfg 3 01f00140
mac:0 Registering S27....
ATHR_GMAC: RX TASKLET - Pkts per Intr:100
ATHR_GMAC: Mac address for unit 0:bfff0000
ATHR_GMAC: ff:ff:ff:ff:ff:ff
ATHR_GMAC: Max segments per packet :   1
ATHR_GMAC: Max tx descriptor count :   128
ATHR_GMAC: Max rx descriptor count :   128
ATHR_GMAC: Mac capability flags    :   2580
mac:1 Registering S27....
ATHR_GMAC: RX TASKLET - Pkts per Intr:100
ATHR_GMAC: Mac address for unit 1:bfff0006
ATHR_GMAC: ff:ff:ff:ff:ff:ff
ATHR_GMAC: Max segments per packet :   1
ATHR_GMAC: Max tx descriptor count :   128
ATHR_GMAC: Max rx descriptor count :   128
ATHR_GMAC: Mac capability flags    :   2D80
device eth0 entered promiscuous mode
device eth1 entered promiscuous mode
athr_gmac_ring_alloc Allocated 2048 at 0x83a7a000
athr_gmac_ring_alloc Allocated 2048 at 0x83aca800
WASP ----> S27 PHY MDIO
Setting Drop CRC Errors, Pause Frames and Length Error frames
Setting PHY...
athr_gmac_ring_alloc Allocated 2048 at 0x83b2a000
athr_gmac_ring_alloc Allocated 2048 at 0x83a98800
WASP ----> S27 PHY MDIO
ATHRS27: resetting s27
ATHRS27: s27 reset done
Setting Drop CRC Errors, Pause Frames and Length Error frames
Setting PHY...
br_igmp_snooping: module license 'unspecified' taints kernel.
Disabling lock debugging due to kernel taint
rmmod: br_dhcp_filter.ko: No such file or directory
ath_hal: 0.9.17.1 (AR9380, REGOPS_FUNC, WRITE_EEPROM, 11D)
ath_rate_atheros: Copyright (c) 2001-2005 Atheros Communications, Inc, All Rights Reserved
ath_spectral: Version 2.0.0
Copyright (c) 2005-2009 Atheros Communications, Inc. All Rights Reserved
SPECTRAL module built on Jul  9 2014 14:14:43
ath_dfs: Version 2.0.0
Copyright (c) 2005-2006 Atheros Communications, Inc. All Rights Reserved
ath_dev: Copyright (c) 2001-2007 Atheros Communications, Inc, All Rights Reserved
ath_ahb: 9.5.2.18 (Atheros/multi-bss)
Enterprise mode: 0x00000000
Restoring Cal data from Flash
ar9300_convert_eeprom templateVersion = 82
ath_get_caps[6189] rx chainmask mismatch actual 3 sc_chainmak 0
ath_get_caps[6164] tx chainmask mismatch actual 3 sc_chainmak 0
wifi0: Atheros 9340: mem=0xb8100000, irq=2
dfs is NULL dfs_init_radar_filtersInterface doesn't accept private ioctl...
HALDbg (8BE0): Operation not permitted
VAP device ath0 created
ath0
dfs is NULL dfs_init_radar_filtersath0      tdmaswitch:0
device ath0 entered promiscuous mode
dfs_attach: use DFS enhancements
DFS min filter rssiThresh = 18
DFS max pulse dur = 151 ticks
dfs_attach disable detects
br0: port 3(ath0) entering forwarding state
Restoring Cal data from Flash
Using HighPower Cal Data
ar9300_convert_eeprom templateVersion = 82
br0: port 3(ath0) entering disabled state
br0: port 3(ath0) entering forwarding state
br0: port 3(ath0) entering disabled state
br0: port 3(ath0) entering forwarding state
insmod: cannot insert `/lib/modules/2.6.31/kernel/nf_conntrack_proto_gre.ko': File exists (-1): File exists
httpServerCreate: try to add port 80

Bootloader:

========= <SafeLoader Main Menu> =========
 <1> Boot
 <2> Upgrade Firmware ->
 <3> Backup User Configuration ->
 <4> Restore User Configuration ->
 <5> Set Password ->
 <6> Reboot
==========================================
Enter your choice(1-6):
========= <Upgrade Firmware Menu> =========
 <1> Upgrade from TFTP Server
 <2> Upgrade over Serial
 <3> Return to Main Menu
===========================================
Enter your choice(1-3):
==== <Backup User Configuration Menu> ====
 <1> Backup to TFTP Server
 <2> Backup over Serial
 <3> Return to Main Menu
==========================================
Enter your choice(1-3):

==== <Restore User Configuration Menu> ====
 <1> Restore from TFTP Server
 <2> Restore over Serial
 <3> Restore factory settings
 <4> Return to Main Menu
===========================================
Enter your choice(1-4):
=========== <Set Password Menu> ===========
 <1> Set SafeLoader Password
 <2> Set Router Password
 <3> Return to Main Menu
===========================================
Enter your choice(1-3):

Wejście do bootloadera za pomocą hasła: admin
Login i hasło do konsoli: root/5up
